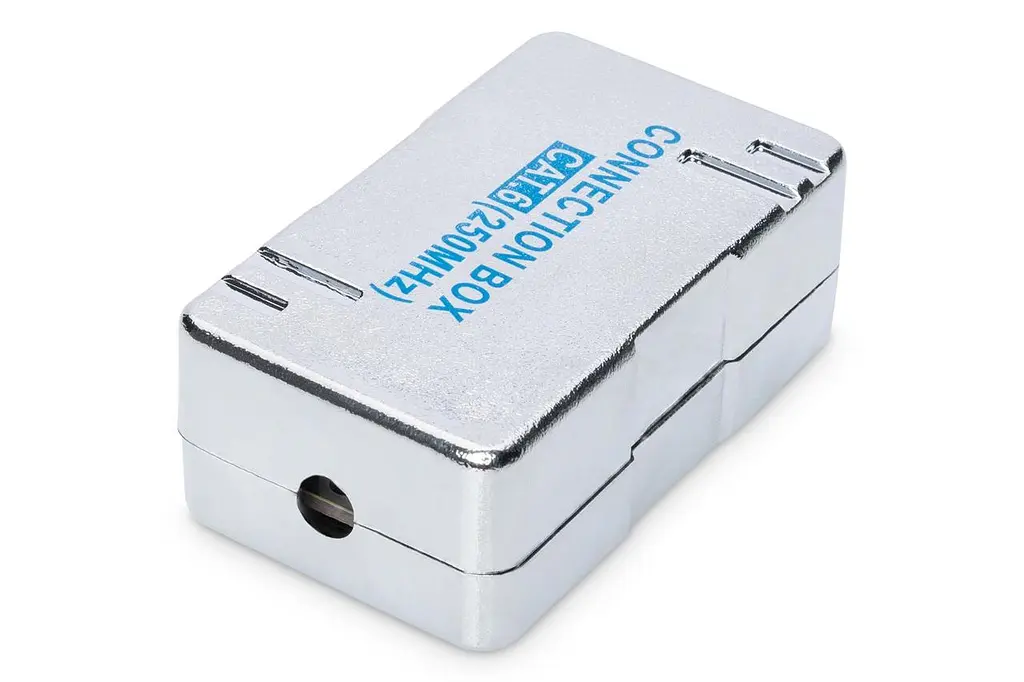

Соединитель LSA, CAT 6, STP DN-93903 DIGITUS by ASSMANN

DIGITUS CAT 6 Connection module для Twisted Pair Cables

connection module for twisted pair cables LSA, shielded, CAT 6

Future-oriented standards and high-end quality for your network.

• Transmission Category 6
• Область применения: Up to 250 MHz, 1GBase-T
• ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General
• Suitable for installation in trunking, surface and flush mount
• Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
• Обслуживающий для подключения instalations cables - extension cables, replacing defect cable links
• Integrated strain relief for installation cables
• Обслуживающий для cables with AWG 22-26 диаметр
• Technical
• Производитель: ABS UL-94V-0
• RJ45 female Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 Tinned bronze
• LSA termination Krone LSA+, UL 94V-0, zinc plated phosphor bronze
• Conductor FR4, UL 94V-0
• Physical
• Операция: -20°C до +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• IDC wire 22 – 26 AWG solid and stranded conductor
• Insulation > 500 MOhm
• Contact < 20 MilliOhm
• Диэлектрический 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
